Reception Security Doors Skyring Terrace’s Haven Kiosk at Newstead in QLD
The Australian Trellis Door Company (ATDC) ‘s versatile security doors are an ideal method of securing the often difficult contours of angled bench tops, counter tops, serveries and reception areas.
ATDC recently installed its curved steel security door to suit the hexagonal shaped bar counter at the Skyring Terrace’s Haven Kiosk at Newstead in QLD.
Architecturally specified by TwoHill & James of Fortitude Valley, QLD, this unique folding security door was configured in a curved format with four off 600mm corner radius curves.
The door was designed without the use of any floor track and is instead secured by a series of intermediate up/down locks and commercial grade patio bolts to facilitate seamless lock up without the need for any cumbersome removable mullions. A professional high gloss pearl white powder coat finish was applied to the door for this project.
Project managers for the job were Lamberts of Coopers Plains.
Commercial Counter Top Expanding Security Doors For Heritage Listed Capitol Theatre
Capitol Theatre Arcade Folding Security Shutter
Capitol Theatre Reception
The Australian Trellis Door Company (ATDC) has recently completed an installation of its commercial grade expanding security doors to the historic Capitol Theatre at Melbourne’s Swanston Street.
Refurbishment
The RMIT owned heritage listed theatre, part of the Capitol House building originally designed by Walter Burley Griffin and his wide Marion in ornate Chicago-gothic style, has recently undergone a $40million refurbishment.
Architect
The specifying architect was Melbourne based Six Degrees Architects and the project managers were Hutchinson Builders.
ATDC Trellis Doors
ATDC’s S04 trackless expanding security doors were installed to the bar areas on two different levels of the building. When unlocked and opened these doors fold and stack back to a minimal storage size of just 12% of the opening width being secured thus making them an attractive option to specifying architects and developers alike. See further information on ATDC’s S04 system.
The Australian Trellis Door Company (ATDC) recently completed a sizeable security door installation at the front entry to the Parks Victoria premises at Albert Park in Melbourne. These doors are heritage approved security doors suitable for Councils, Government and Municipal buildings.
The door was specified by Harrison & White Architects of Carlton, Victoria since it could operate as a retractable, top hung system (without any floor track) and it could also traverse a 90 degree curved aperture through a 600mm radius turn.
The heritage appeal of this unique security door with its scissor style retractable folding action was an added advantage together with its seamless lock up facility which is offered by way of its intermediate up/down locking mechanisms.
The door on this project measured 8500mm wide x 3200mm high.
Project managers for the job was Standrite Australia.
The recent fitout of the Baptist Church Community Hall on Miller Street, West Melbourne, featured the installation of The Australian Trellis Door Co’s (ATDC) premium S08 curved steel retractable commercial security door.
High-Quality Security for Baptist Church Community Hall

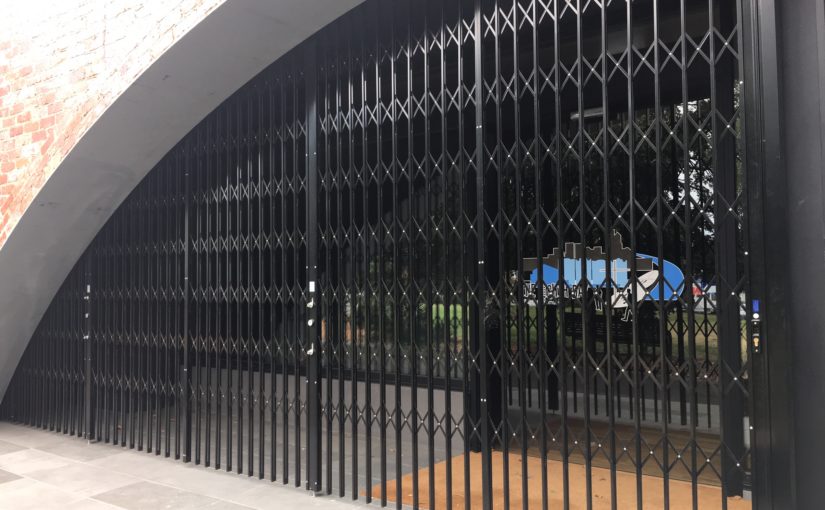

Curved Steel Retractable Commercial Security Door
Impressive Dimensions and Aesthetic Finish
Spanning an impressive width of 8000mm and a height exceeding 3200mm, this architecturally specified security door boasts a high-quality black satin powder-coated finish. This elegant finish enhances the sleek aesthetic lines of the door, ensuring it blends seamlessly with the modern design of the community hall.
Space-Efficient Design
One of the standout features of the S08 security door is its ability to fold back into a stack size that occupies only 15% of the total opening span. This innovative design minimises the storage space required, making it an ideal solution for areas where functionality and space efficiency are paramount.
Advanced Locking and Curving Capabilities
Equipped with intermediate up/down locking mechanisms, the S08 allows secure lock-up for clients without the need for a floor track or removable mullions. Its unique engineering accommodates 600mm radius turns at either 45 or 90 degrees, while offset S-bends and special curves are optional features for added versatility. For detailed technical specifications, visit S08 Security Door Information.
Expert Project Management
The project was expertly managed by Schiavello Constructions (VIC) Pty Ltd, a leading construction firm based in Tullamarine. ATDC regularly work with top project managers as we are the trusted provider of security doors across Australia and worldwide.
Learn More About ATDC’s Solutions
ATDC offers a full range of retractable security doors to suit various commercial and industrial applications. For more information contact ATDC toll-free from anywhere in Australia on 1800 657 435.
Our security options are available in Australia and worldwide, from major cities such as Sydney, Melbourne and Singapore to regional areas.
The Australian Trellis Door Company (ATDC) recently completed the installation of high-quality perforated folding closures at Melbourne University’s Southbank Library, located at their St Kilda Road campus. This installation is part of a larger effort to provide secure and efficient access to key spaces within the university.
High-Quality Perforated Folding Closures at Melbourne University’s Southbank Library
Perforated Folding Closures Southbank University
Collaboration with Architects and Project Managers
The project was specified by Lyons Architects, a renowned architectural firm based in Bourke Street, Melbourne. The project managers overseeing the installation were the APM Group, headquartered in Exhibition Street, Melbourne.
Unique Features of the Folding Closures
The folding closures installed at Melbourne University’s Southbank Library incorporate several unique features that set them apart from traditional security doors. One of the most significant elements is the perforated mesh infills. These mesh panels were chosen specifically to provide the required ventilation and airflow within the building, addressing the needs of the architects while maintaining a secure environment.
In addition to the perforated mesh, the doors feature two 45-degree bends. These bends were necessary to navigate the curved apertures of the library, ensuring a perfect fit while maintaining the integrity of the design.
Seamless Locking Mechanism
Another innovative aspect of the perforated folding closures is their advanced locking system. The doors are equipped with sequential and intermediate up/down locks, allowing for a seamless lock-up effect. This system eliminates the need for a floor track, which can often be cumbersome and prone to wear over time. The locking mechanism enhances the overall functionality and security of the doors while preserving the aesthetic integrity of the library’s design.
Get in Touch with ATDC
Learn more about ATDC’s full range of folding closures online or contact us on 1800 657 435 from anywhere in Australia.
The Australian Trellis Door Co (ATDC) has installed its 200mm slimline panel commercial folding collapsible doors to The Retail Apparel Group’s (RAG) latest store opening at Connor in Bundaberg, Queensland.

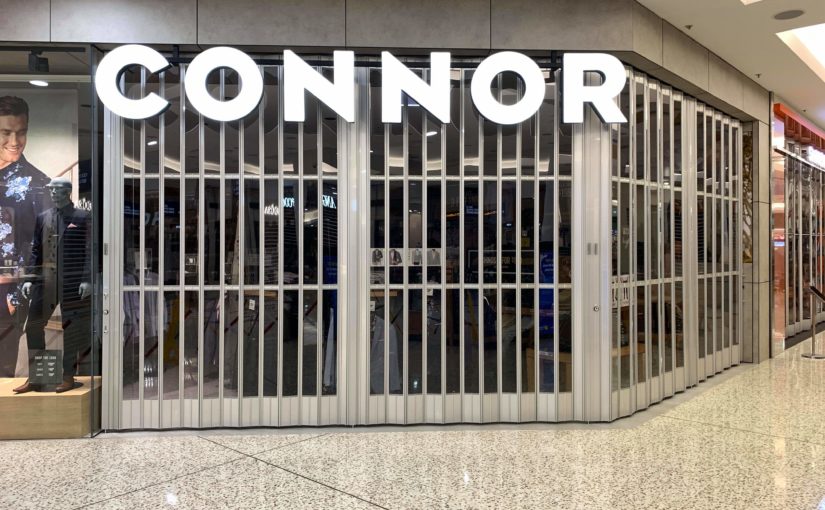

ATDC’s Folding Doors Installed at Connor Store
Slimline Folding Door
Doors for Wide Entries
The two openings secured on this project each spanned in excess of 8500mm wide, which is well within the slimline folding door’s capabilities. The maximum span for these doors is unlimited since ATDC uses an innovative system of intermediate up/down locking mechanisms along the entire width of the door for a seamless lock up effect.
The maximum height is 4500mm. Plus. no floor track is required to secure these apertures.
Trusted by RAG
ATDC has been selected as one of just three national preferred door closure suppliers for the RAG rollout. RAG is one of Australia’s most successful menswear retailers and specialises in smart casual menswear.
Its successful brands include Tarocash, YD, Connor, and Johnny Bigg.
It has recently moved into the women’s active wear market through its acquisition of Rockwear.
Project managers on this job were LSC Shopfitting based in Burleigh Heads, QLD. ATDC will be working with RAG on further stores across Australia.
Find Out More
Learn more about our commercial collapsible doors (including the 300mm, 200mm and 150mm panel doors) by browsing our website.
Contact us at ATDC toll free from anywhere in Australia on 1800 657 435. We can discuss your security needs and find the best solution for you.
Available Worldwide
ATDC sells its security grilles in Sydney, Melbourne, Brisbane, Adelaide, Perth and Canberra as well as in all regional areas across Australia including Townsville, Darwin, Hobart, Newcastle and Geelong.
ATDC also has a thriving business with its export security grilles now being sold throughout South East Asia and the Asia Pacific region (including Vietnam, Hong Kong, Malaysia and Indonesia), as well as to the UAE, New Zealand and the Pacific Islands.
The Australian Trellis Door Company (ATDC) offers a wide range of rapid roll high-speed doors designed specifically for cleanroom applications in healthcare, research, and pharmaceutical environments. These doors meet the demanding requirements of such facilities, ensuring a safe and controlled environment.
Rapid Roll High-Speed Doors for Cleanroom Applications
High Speed Doors for Cleanrooms
Evolving Requirements for Cleanroom Doors
Over the last decade, increased regulation and technological advancements have transformed the design and functionality of doors used in cleanrooms. These environments require precise air quality control and measures to minimise cross-contamination risks, making specialised door solutions essential.
The Role of Cleanrooms
Cleanrooms play a critical role in reducing cross-contamination risks, whether they come from dust, germs, vapours, or other contaminants. By maintaining air pressure differentials between rooms, cleanrooms ensure that air flows from the cleaner side of an opening to the less-clean side, effectively limiting the spread of contaminants.
High-Speed Doors for Cleanroom Efficiency
Rapid roll high-speed doors are an integral component of cleanroom operations, particularly in pharmaceutical manufacturing. These doors:
Prevent cross-contamination by maintaining a controlled environment.
Support air pressure and circulation requirements to optimise cleanroom functionality.
Their ability to open and close quickly ensures minimal disruption to the controlled environment, which is critical in maintaining cleanroom integrity.
Key Features of ATDC’s High-Speed Doors
When selecting doors for cleanroom applications, durability and ease of cleaning are key considerations. ATDC’s high-speed doors are specifically engineered to meet these needs:
They are highly durable and can withstand repeated cleaning with chemical agents.
Their smooth, hard, and non-porous surfaces resist microbial and fungal growth, ensuring compliance with stringent hygiene standards.
Contact ATDC for Cleanroom Solutions
Ensure your cleanroom operations meet the highest standards with ATDC’s reliable and innovative door solutions. Discover more about ATDC’s rapid roll high-speed doors and their suitability for cleanroom applications online or contact us.
Global Retailer H&M have recently installed world class expandable security doors to secure their new storefront at Adelaide’s Rundle Mall.
Stylish Retractable ATDC Shutters for Major Global Brand

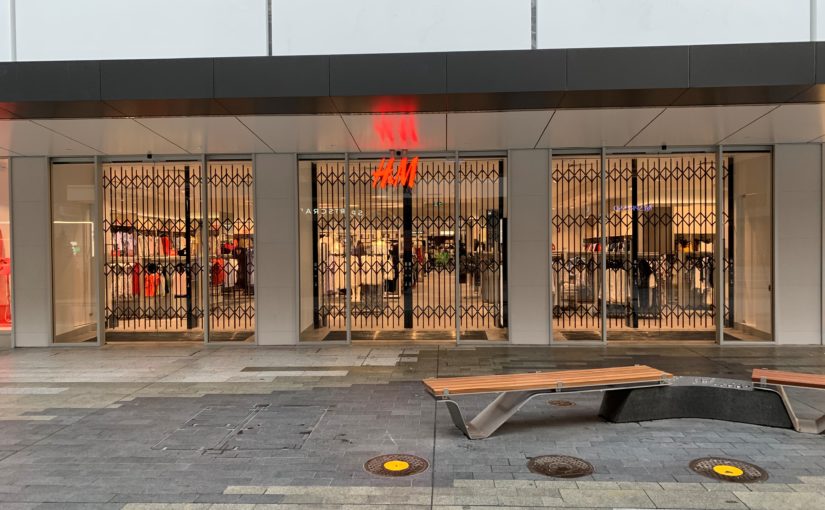

Security Shutters for H&M
Who are H&M?
H+M is one of the world’s foremost fashion groups and employs more than 161,000 staff in more than 4400 stores in 65 countries.
The project manager for this job was Streetbuild Constructions.
What Security Did ATDC Provide for H&M Rundle Mall?
ATDC installed its stylish retractable security shutters (in a night sky powdercoated finish) across three adjacent shopfront windows. By configuring these doors on a side-by-side parallel set of top tracks, ATDC were able to install these doors in such a way that they all overlapped each other and folded back to a common storage bay.
Ease of Use and Space Saving
In this way, it significantly reduces the required overall stacking requirements for these shutters. This was all achievable through the use of multiple up/down locking mechanisms, which created a seamless lock up situation.
For further information on ATDC’s full range of commercial security shutters contact them toll free from anywhere in Australia on 1800657435 or visit their website at
Contact us at ATDC toll free from anywhere in Australia on 1800 657 435.
Available Worldwide
ATDC sells its security grilles in Sydney, Melbourne, Brisbane, Adelaide, Perth and Canberra as well as in all regional areas across Australia including Townsville, Darwin, Hobart, Newcastle and Geelong.
ATDC also has a thriving business with its export security doors now being sold throughout South East Asia and the Asia Pacific region (including Vietnam, Hong Kong, Malaysia and Indonesia), as well as to the UAE, New Zealand and the Pacific Islands.

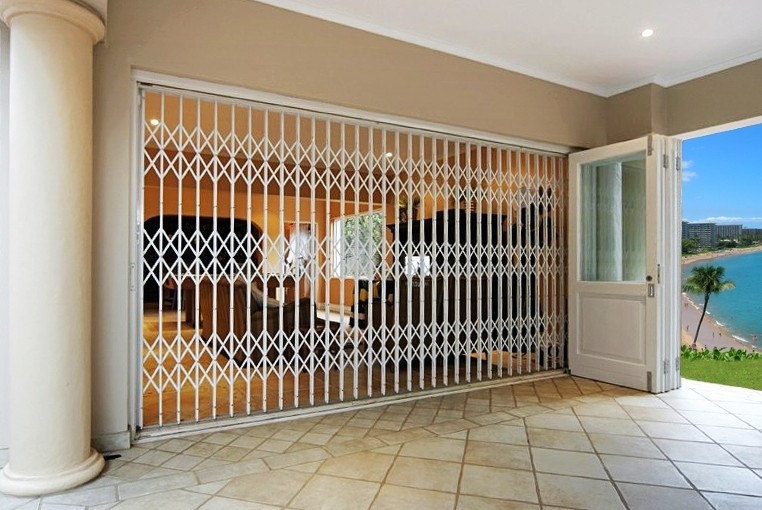

Leading Australian Security door group, the Australian Trellis Door Company™ (ATDC™), has announced the launch of its new S10™ Aluminium T-Max extra strong security door to the market. Featuring impressive styling, security and dependable operation, the S10™ Aluminium T-Max Door is the perfect choice for both residential or commercial applications.
What are ATDC’s new S10 Security Doors?
What is a Concertina Style Door?
The Concertina style door is an expanding security system, comprising of an expanding trellis framed pattern, with rigid top suspension track and bottom guide rail. Offering one of the world’s finest security barriers, the retracting security door is a result of three years of research and development.
What is the S10 made of?
Manufactured from hardened aircraft grade aluminium and stainless steel, the door is fully framed for extra strength, and offers affordable security and safety aesthetic design.
The range features a unique quick-action, keyless style lock for enhanced protection. This locking system has a 12mm pin and a double hook for extra strength. With three locking points in one lock, the door can be slam locked for instant security and protection.
What are the amazing benefits of the S10?
Unlike fixed security screens the S10™ Aluminium T-Max range folds away to one fifth of its size when not in use, allowing the door to disappear from view when not in use.
Designed to suit any interior, the door range is available in an anodised or powder-coated finish, which can be manufactured to a range of colour schemes from the Dulux rang to suit almost any environment.
Can they be designed to match my space?
The S10™ Aluminium T-Max trellis door can be custom designed by the ATDC design team to suit individual requirements and is custom made to fit perfectly. The security doors are now available Australia wide.
Featuring impressive styling, security and dependable operation, the S10™ Aluminium T-Max Door is the perfect choice for securing commercial and industrial applications, as it is easy to use and robust for any environment.
Concertina Style for Retail Applications
The concertina style door is an expanding security system, comprising of an expanding trellis framed pattern, with rigid top suspension track and bottom guide rail, many retail companies like Dick Smith Electronics, Oroton, Bang+Olufsen and BWS now use this product to secure their premises.
The door is also suitable for securing shopping centres, warehouses, offices, restaurants and factories.
Custom Designed for Your Needs
The S10™ Max Extra Strong Aluminium Security Door is custom designed to secure any door, window, or passage opening, while allowing easy operation, security, build quality and flow of air and light, protecting staff at all times and preventing break-ins 24 hours a day.
Featuring High-Security Locking
The door features a unique quick-action, keyless style lock for enhanced protection. This locking system has a 12mm pin an a double hook for extra strength. With three locking points in one lock, the door can be slam locked for instant security and protection.
Space Saving Functionality
Unlike fixed security screens the S10™ Aluminium T-Max range folds away to one fifth of its size when not in use, allowing the door to disappear from view when not in use, and making it ideal for retail and shop front security.
Offering one of the world’s finest security barriers, the retracting security door is a result of three years of research and development.
Customisation Look with High Quality Materials
Manufactured from hardened aircraft grade aluminium and stainless steel, the door is fully framed for extra strength, and offers affordable security and safety in aesthetic design.
Designed to suit any interior, the door range is available in an anodized or powder-coated finish, which can be manufactured to a range of colour schemes and safety in aesthetic design.
Designed for You
The S10™ Aluminium T-Max extra strong trellis door can be custom designed by the ATDC design team to suit individual requirements and is custom made to fit perfectly. The security doors are now available Australia wide.
The door is offered with a five-year warranty when maintained in accordance with the product’s care guidelines offer peace of mind, and features anti-corrosive properties to stand the test of time.
What are the benefits of choosing ATDC?
The door is offered with a five year warranty when maintained in accordance with the product’s care guidelines to offer peace of mind, and features anti-corrosive properties to stand the test of time.
The ATDC is an Australian, family owned business led by brothers Jonathan and Richard Kaplan, which has been operating since 1985.
It currently supplies Australasia’s most diverse range of precision engineered expanding trellis security doors in steel and aluminium, which are suitable for securing most residential, commercial and industrial applications, and has remained the market leader in this field.
High End Folding Aluminium Security Doors Secures Sunreef Mooloolaba
Sunreef is a PADI 5 Star Training Centre which offers accredited dive courses and reef dives in the Sunshine Coast (including the ex-HMAS Brisbane) as well as internationally. It also offers international dive trips. and hires out water sports equipment.
The project managers for this installation were Hart Corporation based in Moolalaba, QLD.
Due to the proximity of the installation location to the sea, these security doors had to be able to survive the extreme corrosive effects of the high saline content of the surrounding marine environment.
The S10 model door was the product of choice as it combines strength, style and world class corrosion resistance. One of the finest and classiest security barrier systems currently on the Australian market.
A result of many years of research and development from ATDC’s design engineers. Further information on this door can be found on ATDC’s website at
The Australian Trellis Door Company (ATDC) offers a wide range of rapid roll high speed doors suitable for most applications, including cold storage environments. Cold storage environments are prevalent in food manufacturing, pharmaceuticals, certain logistics facilities, and more.
High Speed Doors the Ideal Security Solution for Cold Storage
What Do Cold Storage Doors Require?
Cold storage facilities require heat to be kept out and cold air to be contained inside the room. Historically, heavy, insulated solid doors have been used to try to achieve this. These doors generally open to the side to allow access in and out of the storage room.
Why are Traditional Cold Storage Doors Ineffective?
These doors are heavy and slow to move. Their slowness of operation inevitably allows cold air to escape making temperature control a challenge and requiring larger energy loads to maintain the cold storage environment. This comes at a financial cost to the operator of the cold storage facility.
Are Rapid Roll Doors the Solution?
The use of rapid roll high speed doors are becoming increasingly popular in such environments. They are fast moving, which assists in maintaining temperature control by preventing cold air from escaping during the operation of the door.
Suitable rapid roll high speed doors have considerable insulation and sealing characteristics further aiding temperature control. Also, high speed doors can offer many safety features such as motion sensors to avoid hitting obstacles in their path, e.g. people or forklifts.
The Many and Varied Applications of High Speed Doors
The Australian Trellis Door Company (ATDC) offers a wide range of rapid roll high speed doors suitable for use in food processing, healthcare, leisure, pharmaceutical and research environments.
High standards of cleanliness are required in food manufacturing. High speed doors are suitable for all applications where food safety and cleanliness are crucial.
Strict legislation is enforced on medical facilities and hospitals with regards to frequent usage of doors. Rapid roll high speed doors assist in stopping the spreading of infections in hospitals, operating theatres, intensive care units, patient wards and X-ray rooms.
Doors within leisure centres, swimming pools and sports facilities need to cope with frequent usage while being hygienic at the same time. High speed doors are ideal for such use in leisure facilities as they are able to cope with high levels of traffic, while at the same time being hygienic, smooth and non-absorbent. They are resistant to heavy cleaning agents and are rust resistant in such high moisture environments.
Within pharmaceutical applications, research laboratories and cleanrooms, a high level of clean-ability and hygiene is required. High speed doors do not harbour bacteria, due to the smooth, seamless surfaces and non-porous qualities. They play a role in maintaining correct room pressures and air circulation rates.
Contact us at ATDC toll free from anywhere in Australia on 1800 657 435.
Available Worldwide
ATDC sells its high speed doors in Sydney, Melbourne, Brisbane, Adelaide, Perth and Canberra as well as in all regional areas across Australia including Townsville, Darwin, Hobart, Newcastle and Geelong.
ATDC also has a thriving business with its export security doors now being sold throughout South East Asia and the Asia Pacific region (including Vietnam, Hong Kong, Malaysia and Indonesia), as well as to the UAE, New Zealand and the Pacific Islands.
The Australian Trellis Door Company (ATDC) has installed its pedestrian crowd control barriers for access control at Olympic Park Railway Station in the Sydney suburb of Homebush.
Enhancing Access Control: ATDC’s Installation at Olympic Park Railway Station
Access Control Pedestrian Barriers
The Australian Trellis Door Company (ATDC) recently installed its pedestrian crowd control barriers for access control at Olympic Park Railway Station located in the Sydney suburb of Homebush.
Managed by Leichhardt-based Ultra Building Works Pty Ltd, this installation highlights ATDC’s commitment to providing effective access control solutions for high-traffic environments.
Tailored Solutions for Railway Stations
Installed at the top of an access stairwell on the main railway platform, ATDC’s barriers play a crucial role in access control, preventing unauthorised entry after hours and regulating human traffic flow during peak periods.
These barriers are specifically designed and OH&S tested for safe operation, addressing vital safety concerns in locations with high volumes of pedestrian foot traffic.
Specialised Features for Safety and Security
ATDC’s pedestrian barriers offer a range of special features to enhance safety and security. They can be fitted with keyless locking mechanisms for quick egress in emergency situations, ensuring swift evacuation if needed.
Additionally, where specified, the barriers can feature a double diamond mesh infill, preventing individuals from gaining footholds and attempting to climb over the barriers, further enhancing safety measures.
Demonstrated Success in High-Profile Projects
The effectiveness and reliability of ATDC’s pedestrian barriers have made them the gates of choice for numerous high-profile government projects and public infrastructure projects across Australia.
Notably, ATDC’s barriers were successfully deployed at Sydney’s Barangaroo Ferry Terminal, underscoring their suitability for critical transportation hubs and public spaces. For further information on this project refer to the project page.
Contact ATDC for Custom Solutions
For inquiries or to learn more about ATDC’s range of pedestrian crowd control barriers and access control solutions, view our barrier range, or get in touch.
The Australian Trellis Door Company (ATDC) has installed multiple curved trellis security doors for numerous tenancies within the Market Hall in Yagan Square, a Metropolitan Redevelopment Authority (MRA) redevelopment project in the heart of Perth’s CBD.
Bespoke Doors to Fit Curved Facades
Curved Trellis Security Doors
Where Did We Supply These Doors?
Yagan Square is a landmark civic space situated within Perth City Link and between the city’s major transport hubs. Yagan Square is a unique place infused with local flavour and Aboriginal culture that inspires people to meet, connect and celebrate.
The Head Contractor for the project was Subiaco based Doric Group.
What Did We Supply?
Specified by Maddison Architects, these curved security doors utilise multiple intermediate up/down locking mechanisms to achieve a seamless lock up for the tenants without the need for any floor track to secure the tenancies. Finished in a special Interpon Dulux Matt Black Ace Powdercoated finish, these doors turn on a 90 degree angle through a 600mm radius curve.
ATDC sells its security doors in Sydney, Melbourne, Brisbane, Adelaide, Perth and Canberra as well as in all regional areas across Australia including Townsville, Darwin, Hobart, Newcastle and Geelong.
ATDC also has a thriving business with its export security doors now being sold throughout South East Asia and the Asia Pacific region (including Vietnam, Hong Kong, Malaysia and Indonesia), as well as to the UAE, New Zealand and the Pacific Islands.
The Australian Trellis Door Company (ATDC)’s impressive market penetration now includes installing its unique shop closure doors (portable crowd control barriers) at numerous Guzman Y Gomez (Guzman) restaurants.
The Australian Trellis Door Company (ATDC) continues to expand its market presence by installing its unique shop closure doors, also known as portable crowd control barriers, at Guzman restaurants.

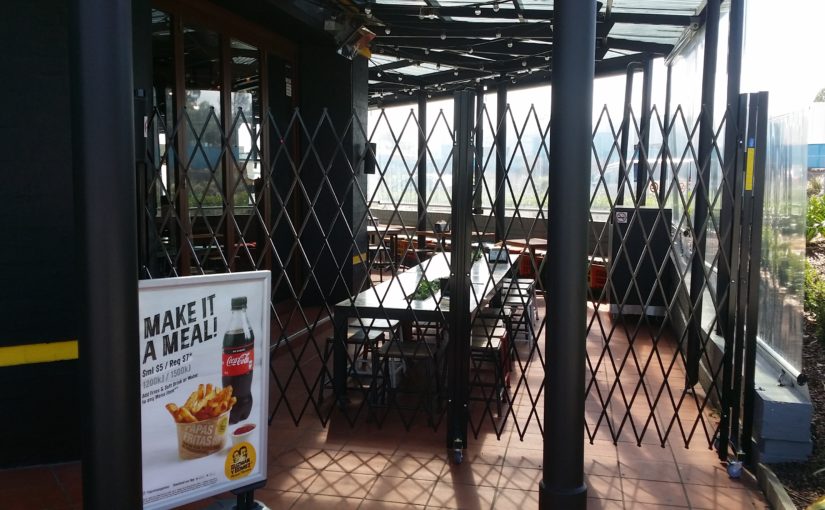

Portable Barrier Shop Closure Doors
Guzman Y Gomez is a prominent Australian licensed franchise business specialising in Mexican cuisine, boasting over 100 restaurants across Australia, Singapore, and Japan. Since its inception in 2006, Guzman has established itself as a leading player in the fast-casual dining sector, with its first Australian store opening in Newtown, Sydney. The recent expansion into Singapore in 2013 underscores Guzman’s growing international footprint.
Tailored Solutions for Outdoor Seating Areas
ATDC’s shop closure doors were recently installed at Guzman’s Wetherill Park restaurant in Sydney to protect the outdoor seating area (pictured above). These trackless doors offer a cost-effective solution, requiring no expensive overhead structures for support. Installed at a height of 2520mm, the closures are lockable, completely mobile, and stored conveniently back of house, ensuring they do not disrupt business operations during trading hours.
Demonstrated Success and Export Opportunities
The successful installation at Guzman Y Gomez restaurants exemplifies ATDC’s commitment to delivering tailored security solutions to meet the unique needs of its clients. ATDC’s closures are not only sold throughout Australia but are also widely exported across Southeast Asia, highlighting our versatility and effectiveness in diverse market settings. We work with widely varied clients, both major and small businesses worldwide.
Contact Us for Custom Solutions
For further information on ATDC’s shop closures and other security solutions, please contact us.
The S03™ and S06™ trellis doors passed this test by withstanding a force of 450N being applied to its locking style. i.e. the same effect as an intruder attempting to lever open our 3-point locking system.
The S03™ and S06™ trellis doors passed this test by withstanding a repeated impact force of 100 joules from a 40kg lead ball i.e. the same effect as an intruder attempting to kick his way through the security door.
The S03™ and S06™ trellis doors passed this test by withstanding a repeated pulling force of up to 2kN i.e. the same effect as an intruder attempting to pull out the security door or window.
To identify and mitigate risks to health and safety to assist in identifying safety hazards related to the supply and use of the S04-1™ mobile trackless trellis barrier.
Security Standards and Testing
