ATDC has recently completed an installation of its glass stacking door GS3 glass stacking door to secure the shopfront of the Adore Beauty tenancy which opened last week at Broadway Shopping Centre just outside the Sydney CBD.
PROJECT DESIGN SPECIFICATIONS
The glass stacking door on this project spanned 5500mm wide x 3400mm high and it is designed with its stackable panels centrally top hung .These 750mm wide panels are suspended from industrial grade hangar assemblies housed in stainless steel carriages from a marine grade aluminium top track. This top track in turn is supported along its entire span by an overheard structural support beam. The curtain infill on these doors is a 6.38mm translucent laminated safety glass. Locking is achieved through intermediate down locks along the entire width of the door which alleviates the need for any floor track.
PROJECT MANAGERS
Project managers for this installation were national Fitout group Australasian Retail Projects based in Molendinar, Queensland.
COLOUR RANGE
The doors installed on this project were supplied in a black powder coated finish.
WARRANTY
12-month warranty against defective materials and workmanship applies
PROJECT WORK

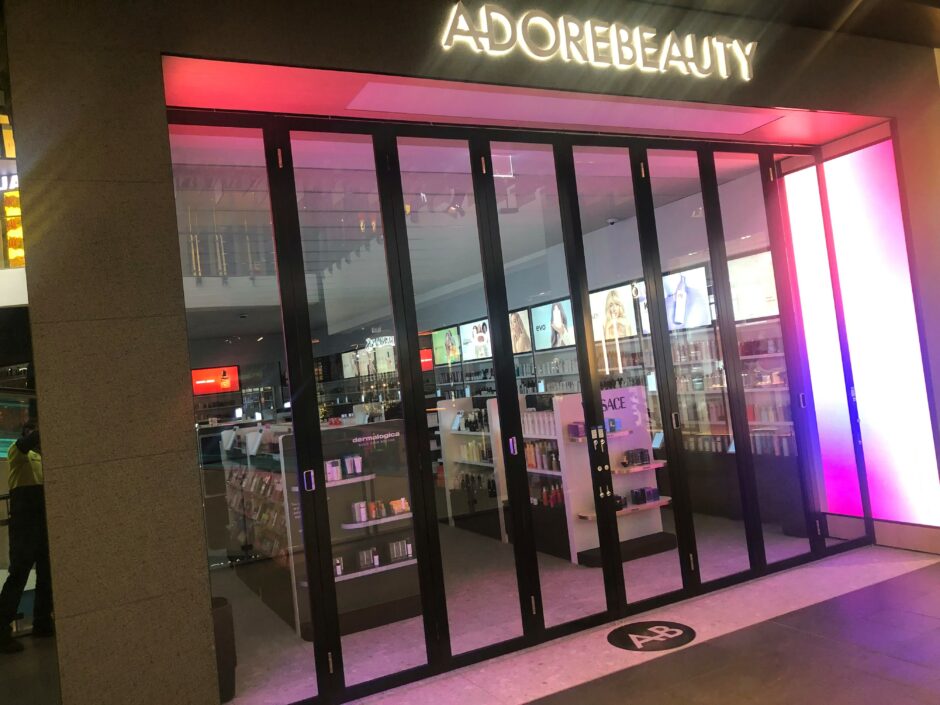

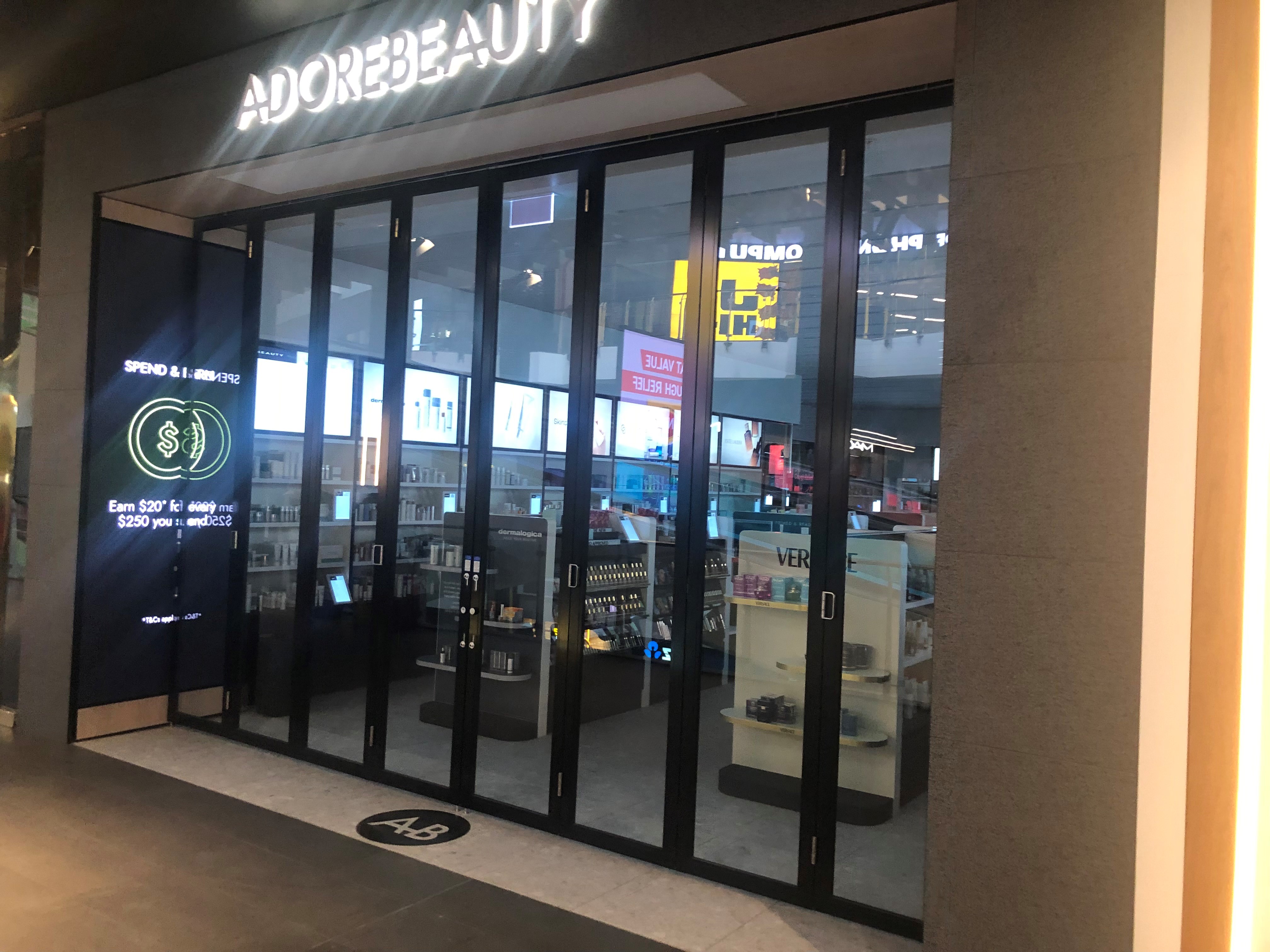

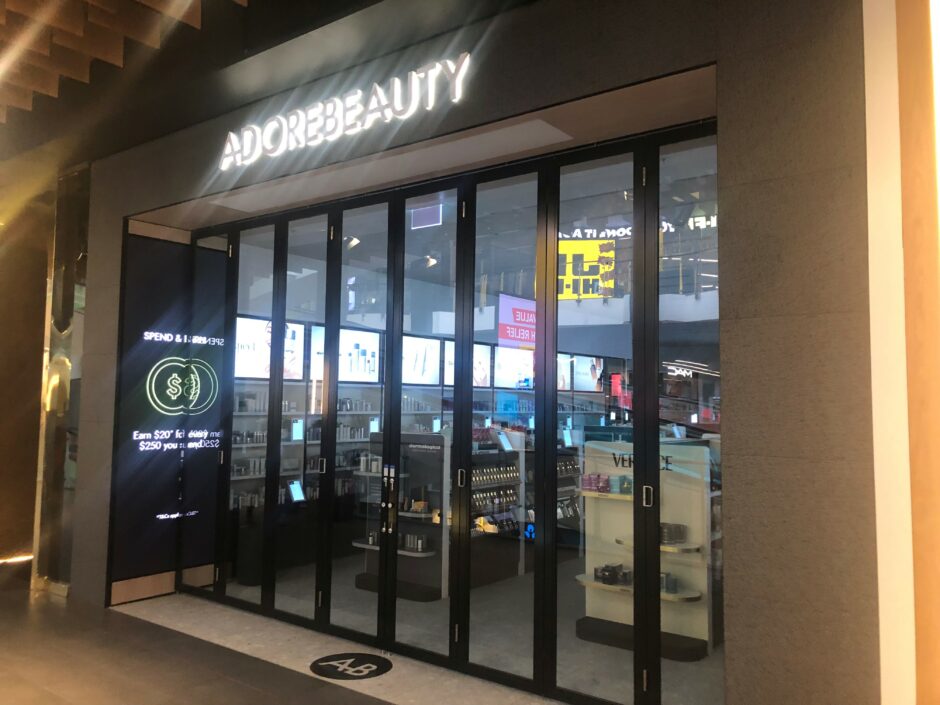

Photographs of this installation are attached for viewing and indicate how the door folds out of sight when not in use.
