Folding Doors


The Australian Trellis Door Co has one of the most space efficient folding closures on the market.

These cost-effective doors are constructed from aluminium making them lightweight yet stable and strong. Perfect for shopfront tenancies, reception areas and free standing kiosks in airports, shopping centres, hospitals, aged care facilities, hotels, clubs and banks.

OPERATION
Manually operated the doors can be either single or biparting in operation, stacking to one side or two sides as required depending on side room clearances.

DOOR PANEL OPTIONS
Polycarbonate: 3mm thick polycarbonate panels provide remarkable impact-resistance in a surprisingly light package reinforced with our nylon fixing profile.
Perforated Aluminium: 3mm thick aluminium sheeting which provides approximately 50% ventilation with 5mm diameter multi holes, reinforced with our nylon fixing profile.

OPERATING SYSTEM
Our overhead track system is used. Single and double trolley rollers fitted with ball bearings are used and glide in an overhead track 41mm high x 35mm wide aluminium extrusion. The fitted tracks may have a radius of no less than 600mm (wide panel) or 407mm (slim panel) to suit curved applications. For elliptical curves, a template must be provided by the customer.

PANEL SIZES & WEIGHTS
FC1 – Wide panel, is 285mm width overall (262mm centre hinge to centre hinge). Approx 12kg/M2
FC1 – Slim panel, is 148mm width overall (128mm centre hinge to centre hinge). Approx 16kg/M2

MAXIMUM SIZES
Our Folding Closures can be manufactured to a maximum height of 4,500mm and can span ANY width opening. For minimum heights, please discuss with your local ATDC representative.

LOCKING
The leading posts will be provided with a lock and 2 key cylinders which can be operated from both sides. As a standard, the lock is supplied with a “builders key’. Special-purpose cylinders are available (at an extra cost) to facilitate master keying. The master keying is the responsibility of the purchaser or customer. Floor mounted sockets with spring loaded dust caps are included.

FINISH
Our standard finish is matt natural anodized aluminium. Powder coating to standard Duralloy colours available (at an extra cost).
NOTE: Some special finishes may extend delivery period.

STACKING POCKET SIZES
See door pocket table per attached brochure or contact your ATDC representative for further information on your requirements.

WORKS BY OTHERS
Preparation of openings to suit the FC1- Wide Panel or FC1- Slim Panel Folding Closures is by others. The overhead tracks will not be installed to non – structural supports. If required, provision of storage boxes, ceiling access panels and master – keying of locks are by others.

OPTIONAL EXTRAS

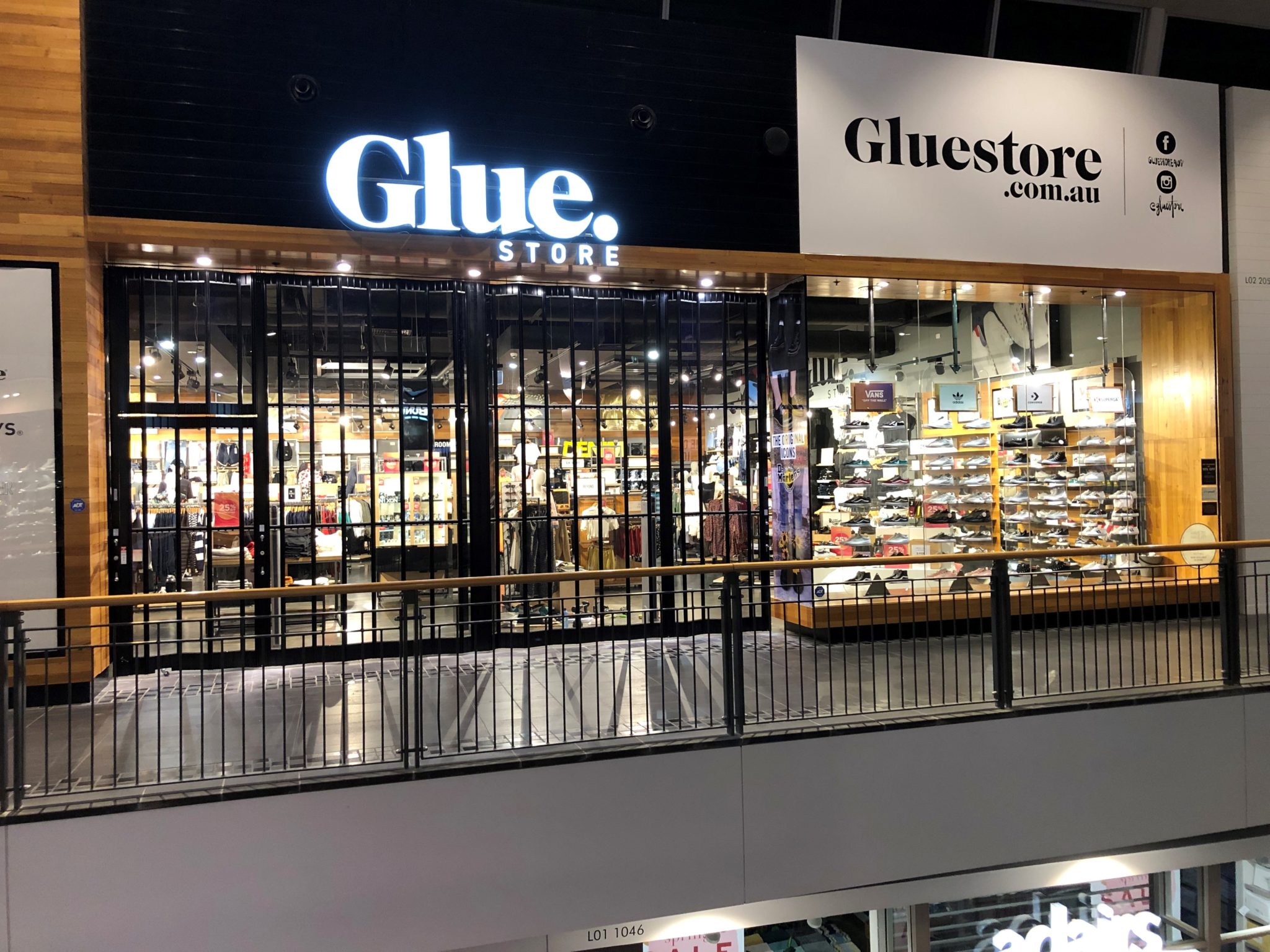

Egress doors for emergency exits compliant to BCA requirements, can be incorporated into any closed folding closure that has a minimum height of 2250mm, operable with interior thumb turn or single down action handle, please consult an ATDC Technician for more info and optional pricing.
Tapered openings are available upon request.

STACKING POCKET SIZES

FC 1 – SINGLE STACK FOLDING CLOSURE DOOR SPECIFICATIONS
Panel WidthInternal dimension reqd.Opening width1500175020002250250027503000325035003750400042504500475050005250550057506000650070007500800085009000950010000
285360Min stacking dimension reqd31033034036038051053055056058059061063064066080081083084088091094011101140117011901220
148228390420460490520690720750790820850880910950980115011801210124013101370144016201690175018101880

Please note stacking sizes above are indicative only.  Please consult ATDC prior to finalising your stacking pocket.

FC 1 – DOUBLE STACK FOLDING CLOSURE DOOR SPECIFICATIONS
Panel WidthInternal dimension reqd.Opening width3000325035003750400042504500475050005250550057506000650070007500800085009000950010000105001100011500120001250013000
285360Min stacking dimension reqd6205605905906206206506506809009309309609901020106010901120112011501180146014901520152015601590
14822878081084088091094097010001040133013601390142014901550162016801740181018701940226023202390245025202580

Please note stacking sizes above are indicative only.  Please consult ATDC prior to finalising your stacking pocket.

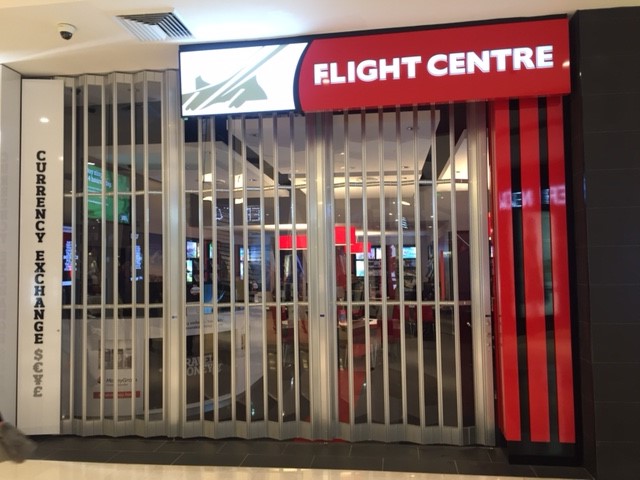

shop doors melbourneshop doors100mm Folding Closure100mm folding Closure Panel 2Flight Centre ParramattaEscape TravelFlight Centre Baulkham HillsBay Audio Folding Closure
